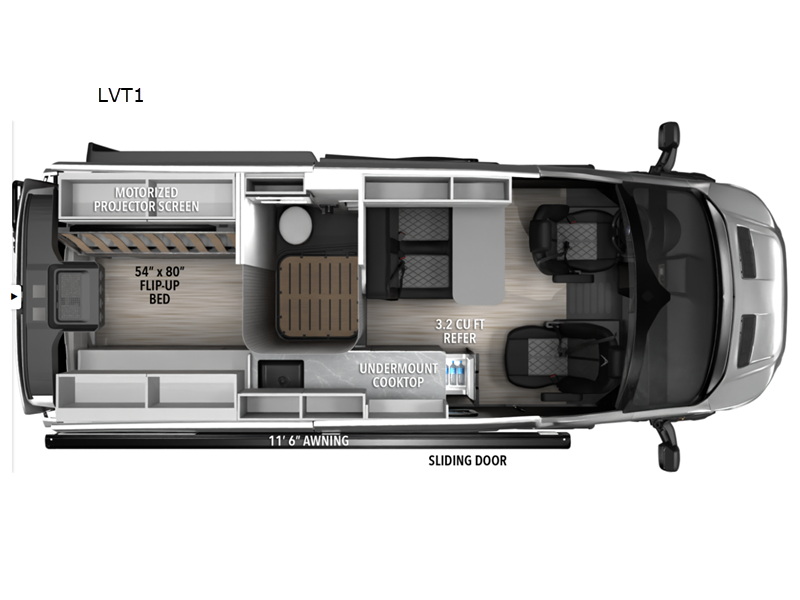

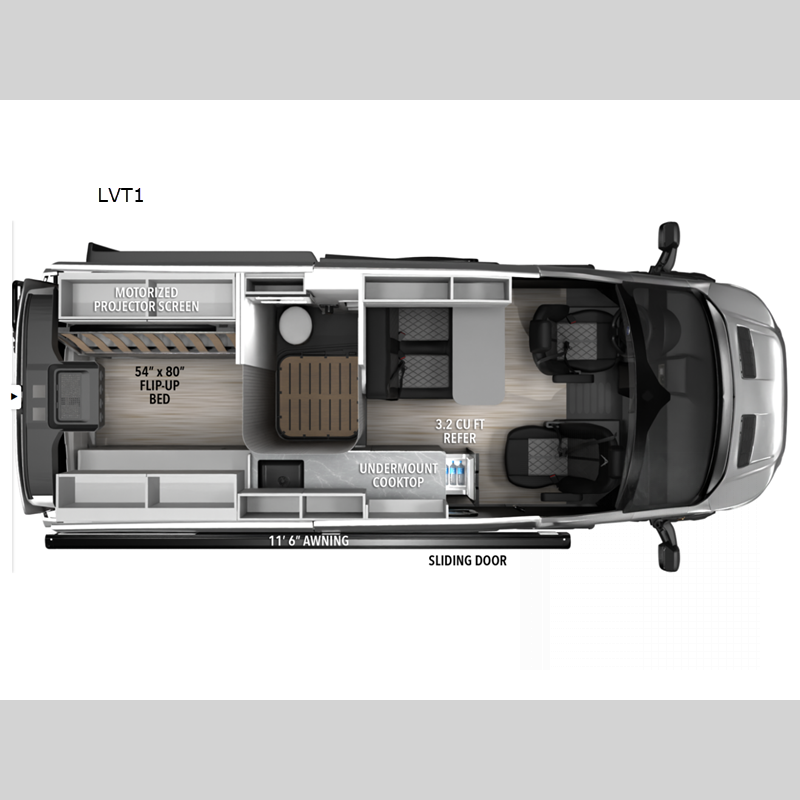

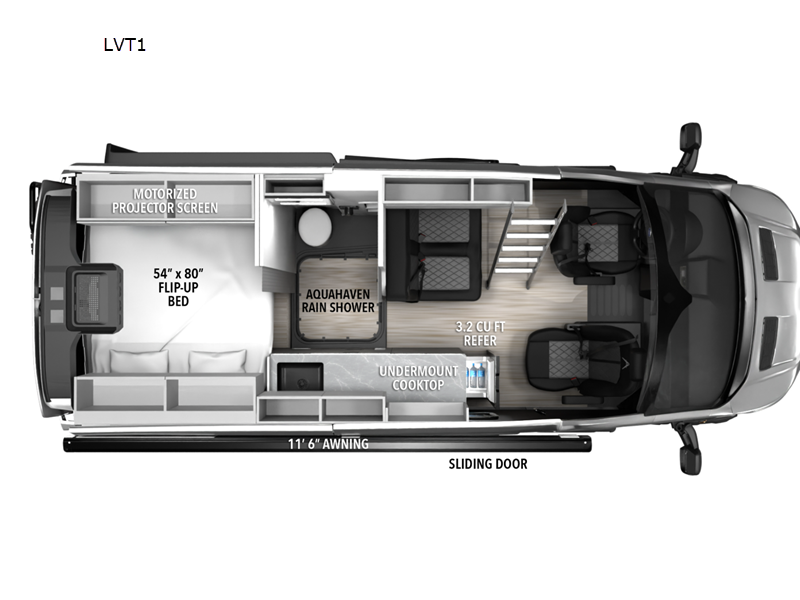

View Floorplans Request Info
Factory Brochure Print Page

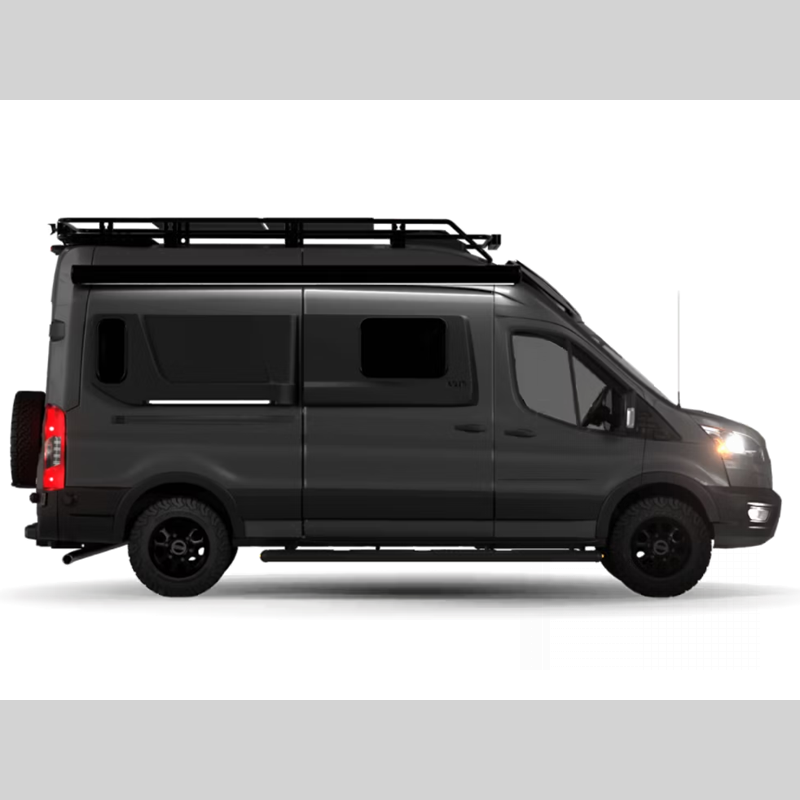

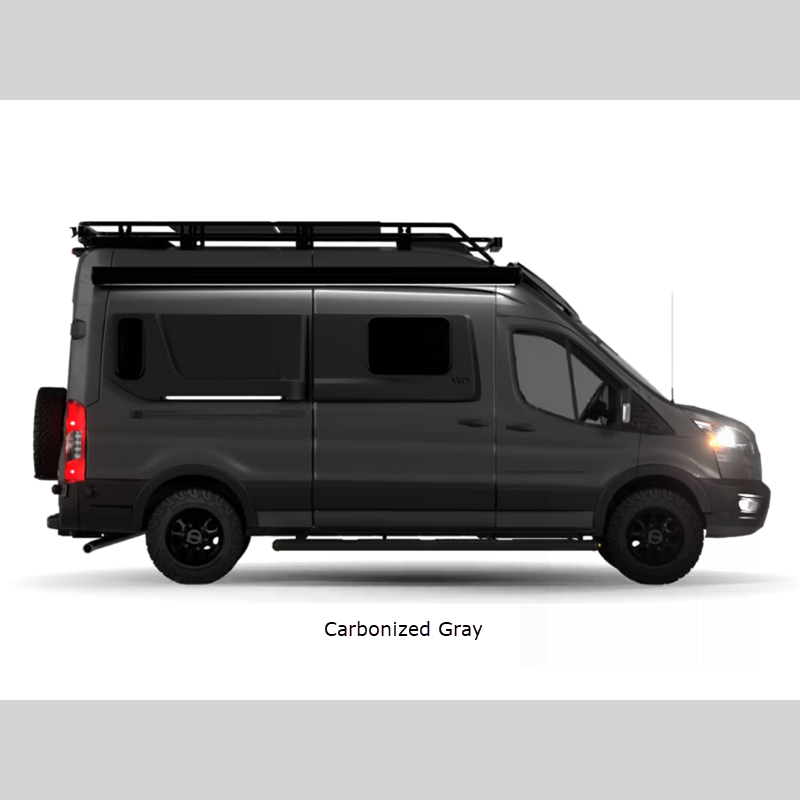

Discover a new way to travel in style and comfort with the latest Grand Design Lineage Series VT Class B motorhomes. Built on the reliable Ford transit cargo AWD chassis, these motorhomes are designed to provide a smooth and powerful ride.



There is also a 10-speed transmission, a SYNC 4 system, adaptive cruise control, plus connected navigation and 360-degree camera the driver is sure to appreciate. You will stay powered up with a 51V Lithionics battery, 3,000W inverter, and two 180W solar panels. The interior is just as impressive with its double-pane acrylic skylight, integrated blackout shades and screen, and sleek porcelain countertop in the kitchen.



Adventure is just around the corner with a Lineage Series VT Class B gas van by Grand Design; choose yours today!



Lineage Series VT Features:

Standard Features (2026)



Frame & Chassis

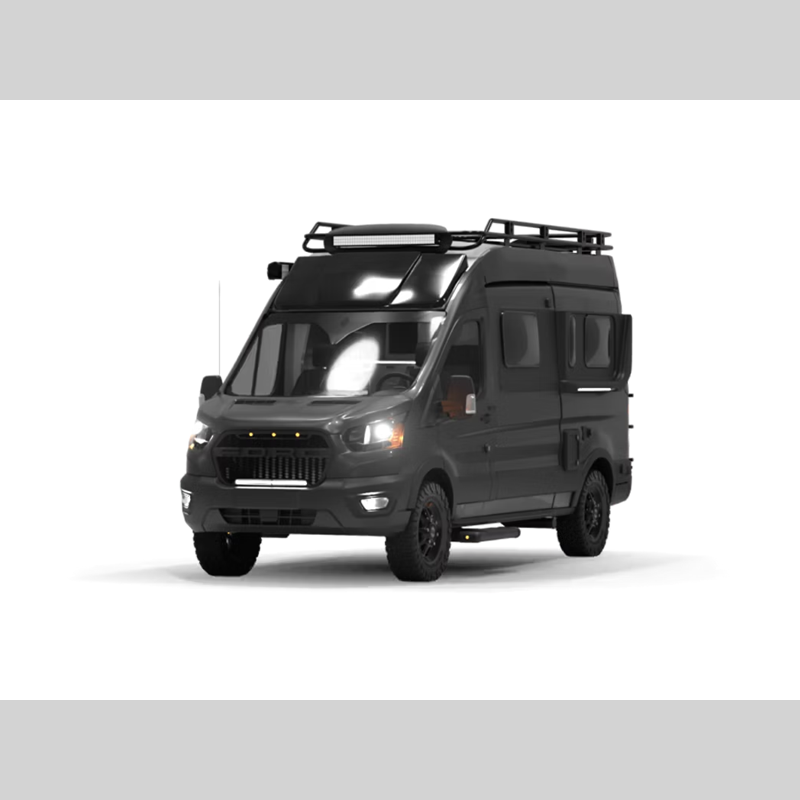

  • Ford Transit Cargo AWD High Roof 148" Wheelbase
  • GVWR 9,950 lbs. / GCWR 12,600 lbs.
  • 3.5L EcoBoost V6
  • Transmission: 10-Spd Automatic w/OD & SelectShift
  • 3.73 Limited-Slip Axle Ratio
  • Ford Connectivity Package (1-Year Included)
  • Black High-Intensity Discharge (HID) Headlamps
  • SYNC 4 Includes 12" center display, Bluetooth, dual USB ports, wireless Apple CarPlay and Android Auto compatibility
  • Dual Alternators (250 Amps Each)
  • Fixed Rear Cargo Door Glass - Rear-Window Defroster
  • Keyless Entry Keypad
  • Adaptive Cruise Control w/Lane Centering. Includes stop and go and predictive speed assist
  • Side Parking Sensors
  • Blind Spot Information System w/Cross Traffic Alert
  • Connected navigation and 360-degree camera
  • Battery run down protection
  • SiriusXM with 360L AM/FM/HD/Satellite radio
  • Cockpit Privacy Shades (Windshield, Driver & Passenger)
  • Swiveling Driver and Passenger Seat
  • Ford Co-Pilot360 w/Side Wind Stabilization electronic stability control system with antirollover
  • Dual AGM Batteries (70 Amp-hr Each)
  • Heated Driver and Passenger Seats
  • Front Cup Holders
  • USB-C Socket
  • Heavy Duty Trailer Tow Package
  • Ford Upfitter switches
  • Custom Recover on Driver and Passenger Seat

Construction

  • 2" Plascore Honeycomb composite floor with bottom radiant barrier
  • 2tec2 Woven Fabric flooring
  • Alpha insulation and 3M Thinsulate
  • CNC Routed Wall Panels
  • Thermoformed ABS dinette and kithentte panels
  • Welformed Automotive fabric bedroom panels
  • SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs)
  • Soft Touch perforated Ceiling

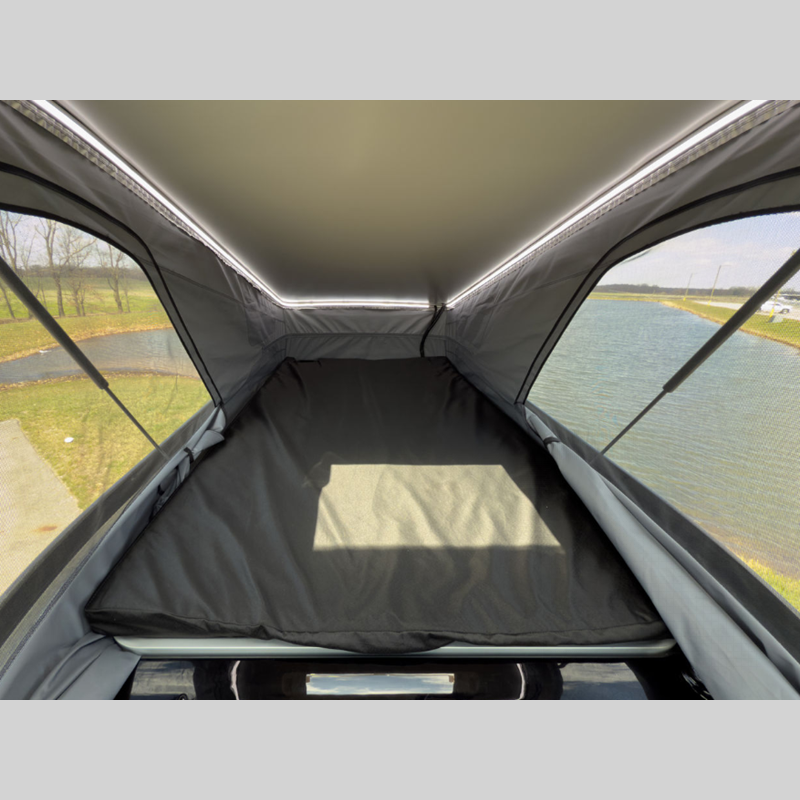

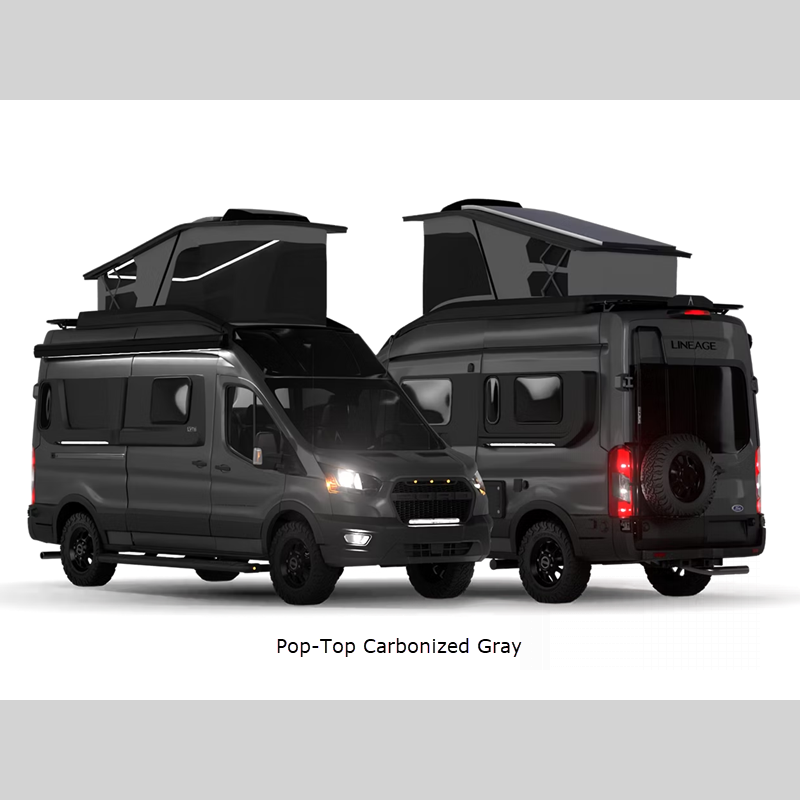

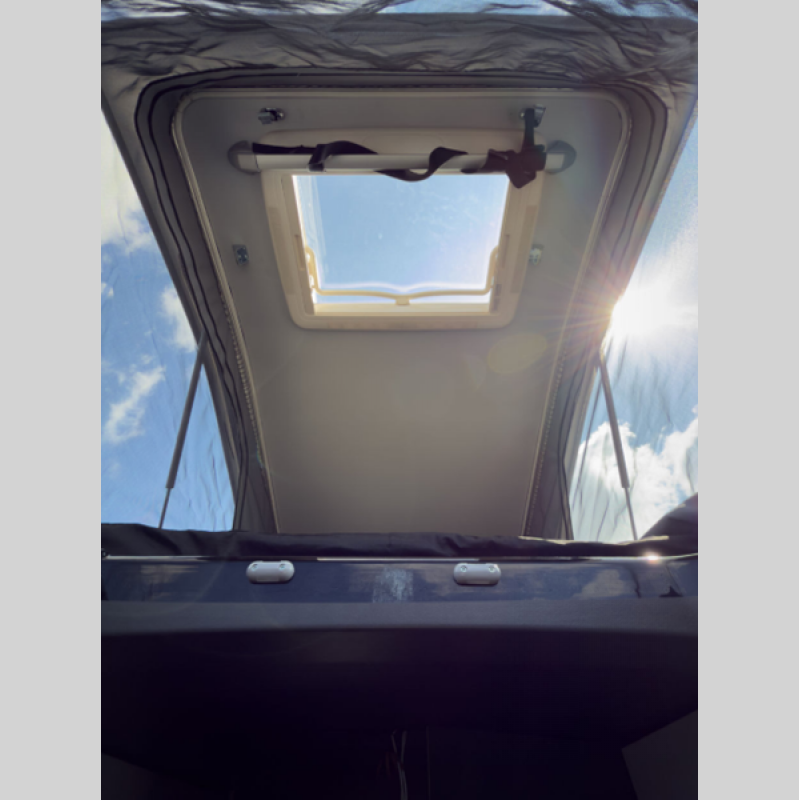

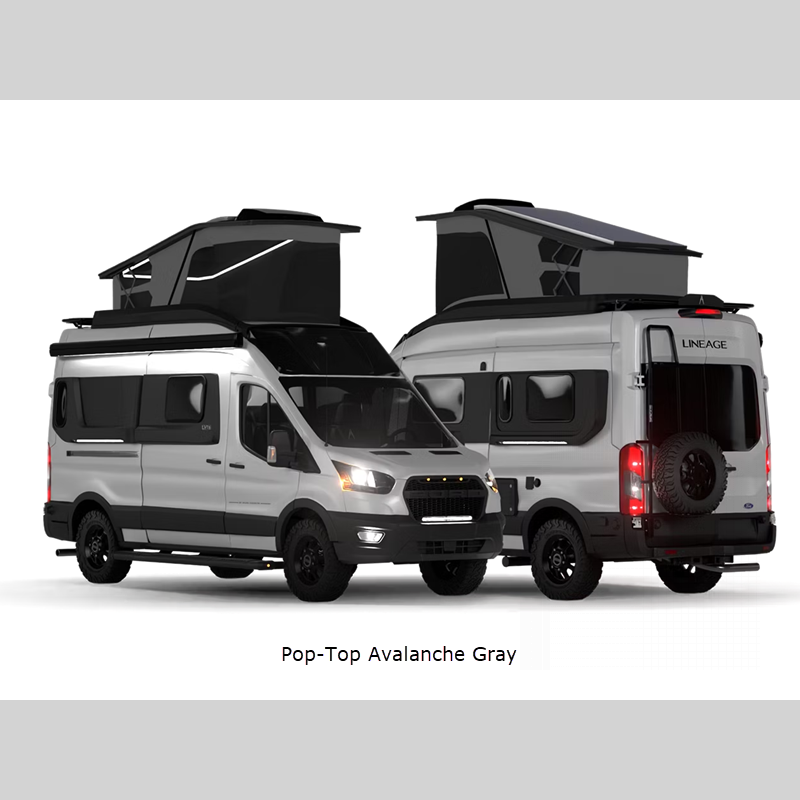

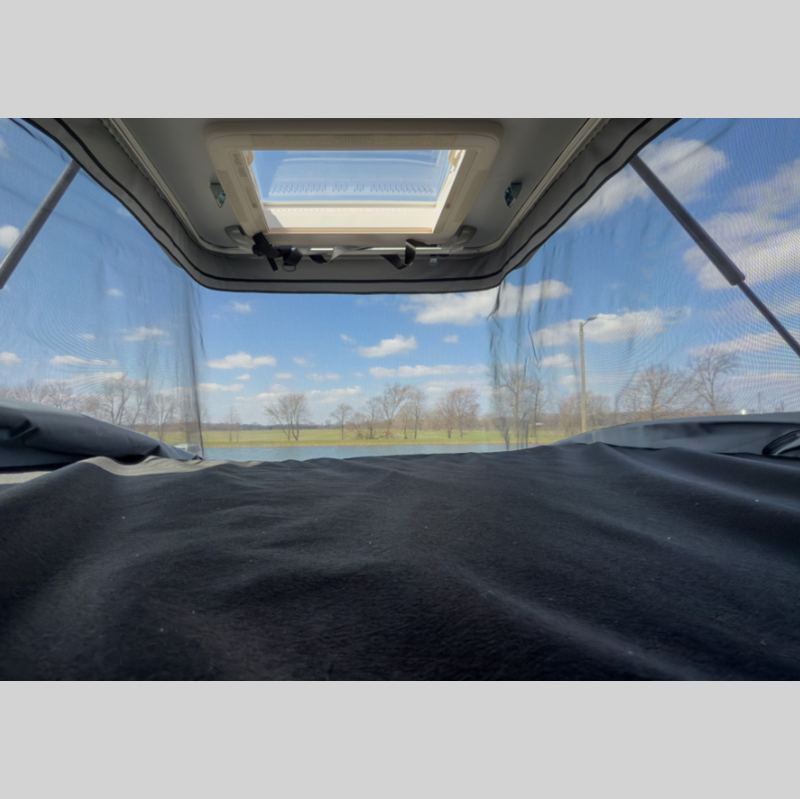

  • 5,000 lbs. Tow Hitch w/7 way round and 4-way flat plug (removed when selecting pop-top option) (LVT1)

Exterior

  • Van Compass Stage 3 Topo 2.0 Lift (Stage 4 optional)
  • Luverne driver and passenger running boards
  • Power rotating front light bar 15,200lm (deleted with pop-top option)
  • (2) rear pod lights 2,850lm

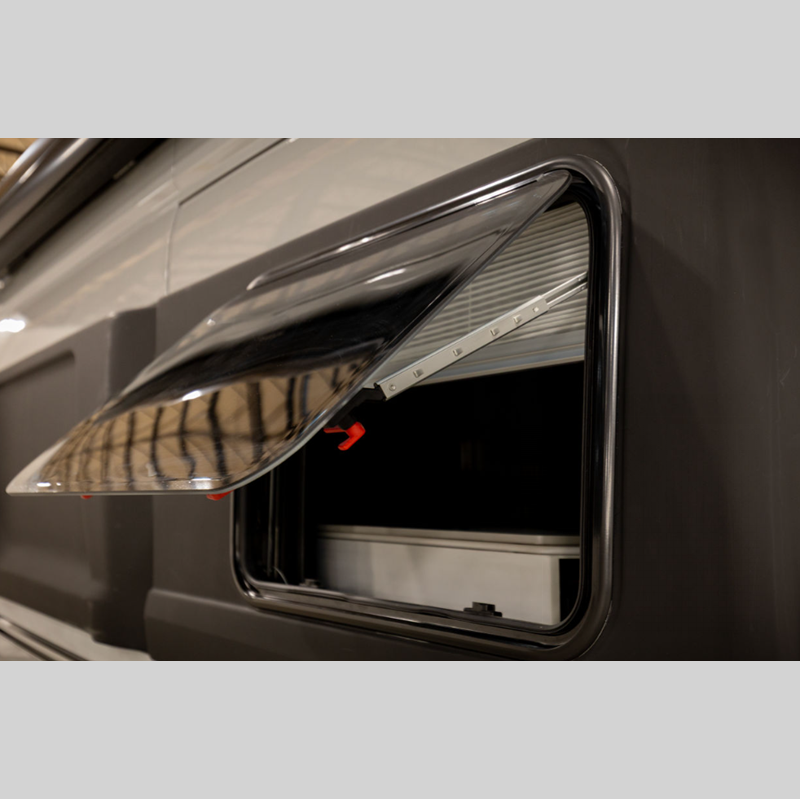

  • Polyplastic Double Pane acrylic operable windows

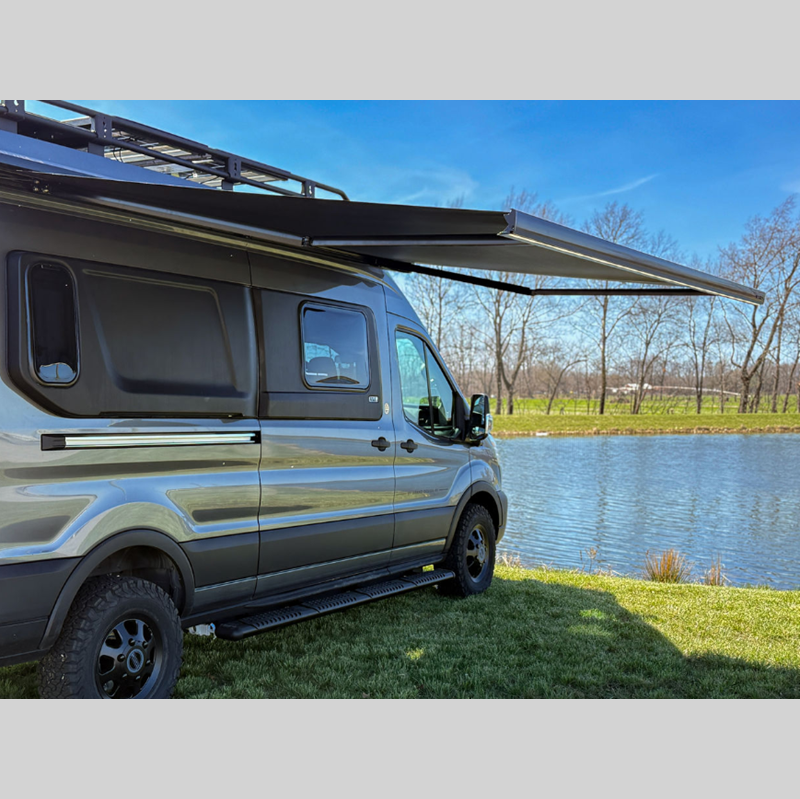

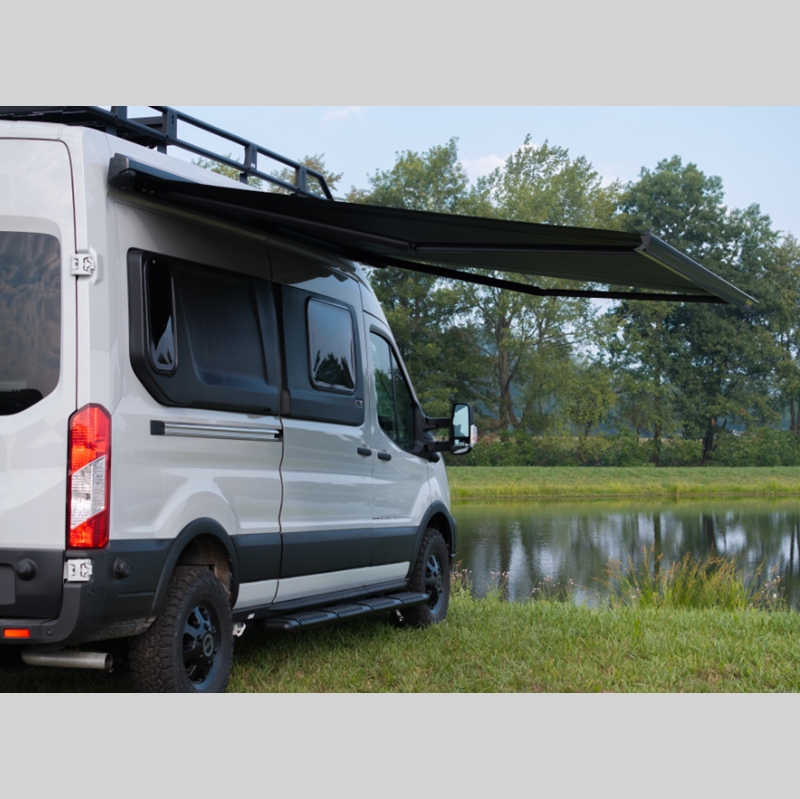

  • 11.5ft Girard Armless Awning with Wind Sensor
  • Exterior light on underside of running boards and side capsules

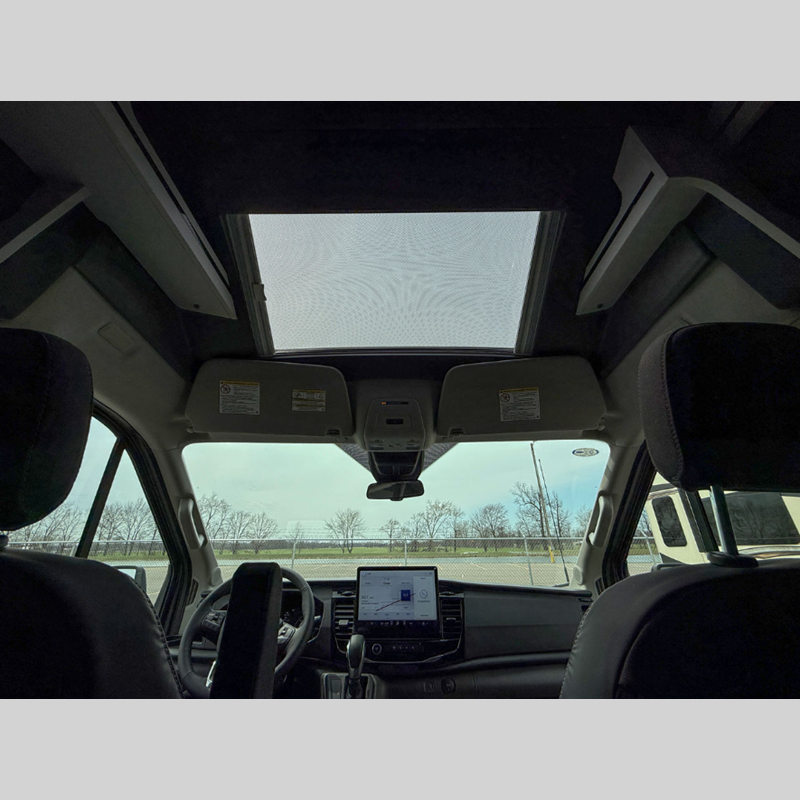

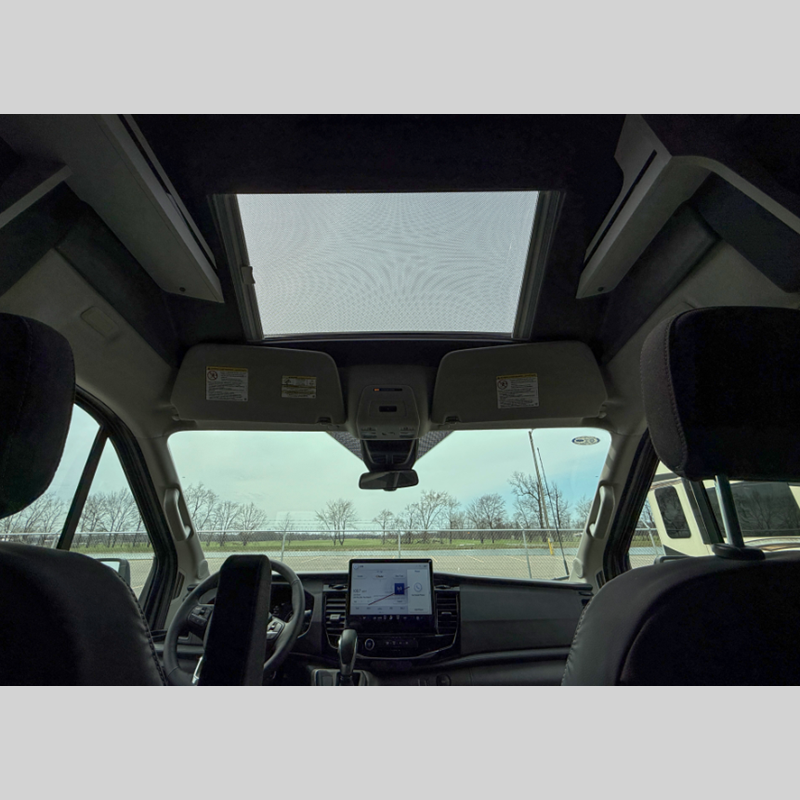

  • Vista Double Pane acrylic panoramic skylight
  • Custom molded side capsules

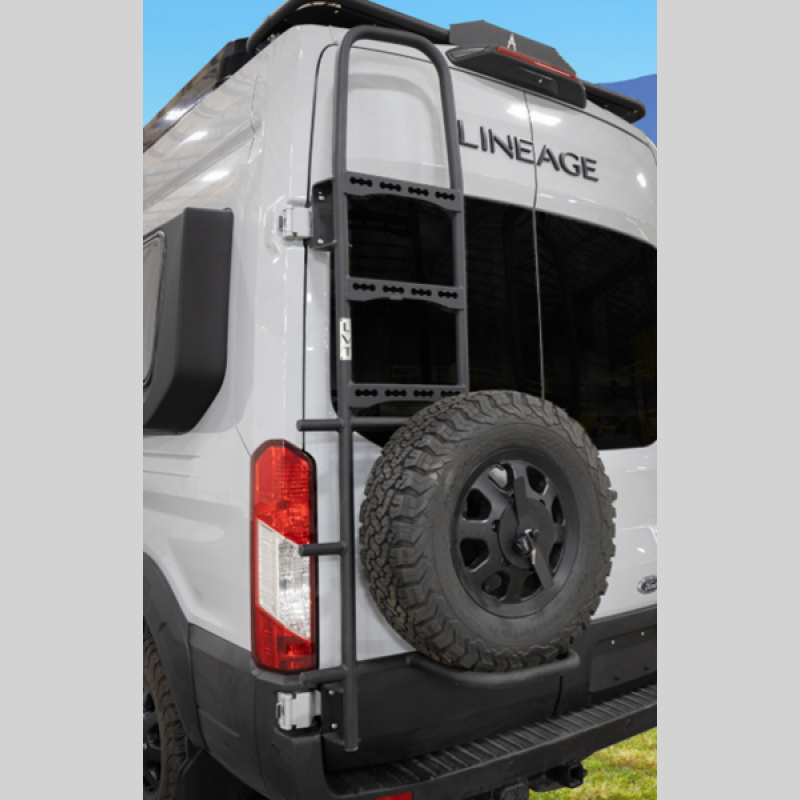

  • Spare Tire Carrier
  • Quick connect exterior shower
  • Rear storage deck
  • Starlink prep included bracket and power cord

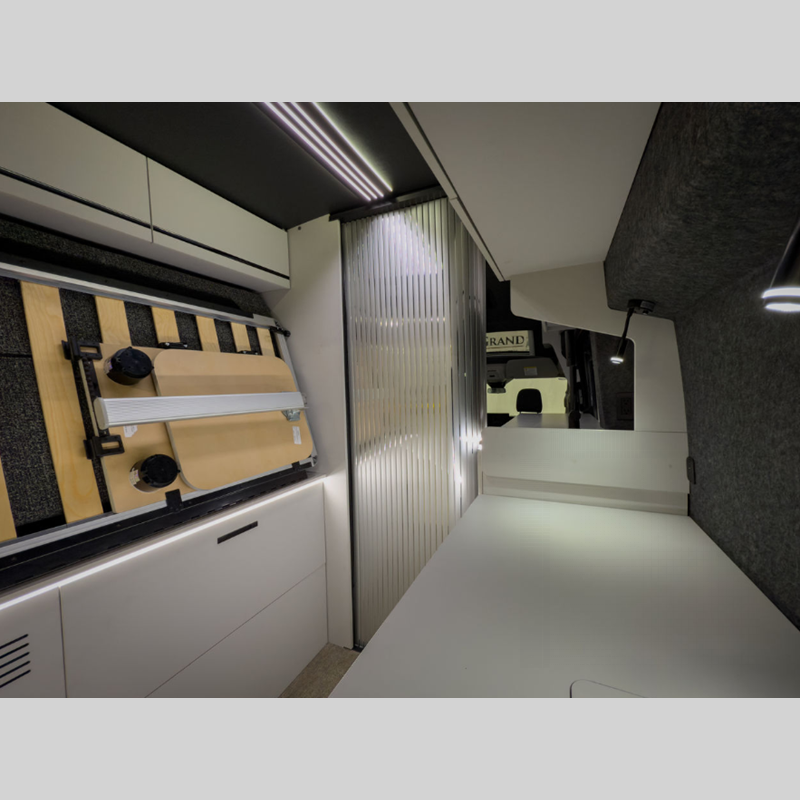

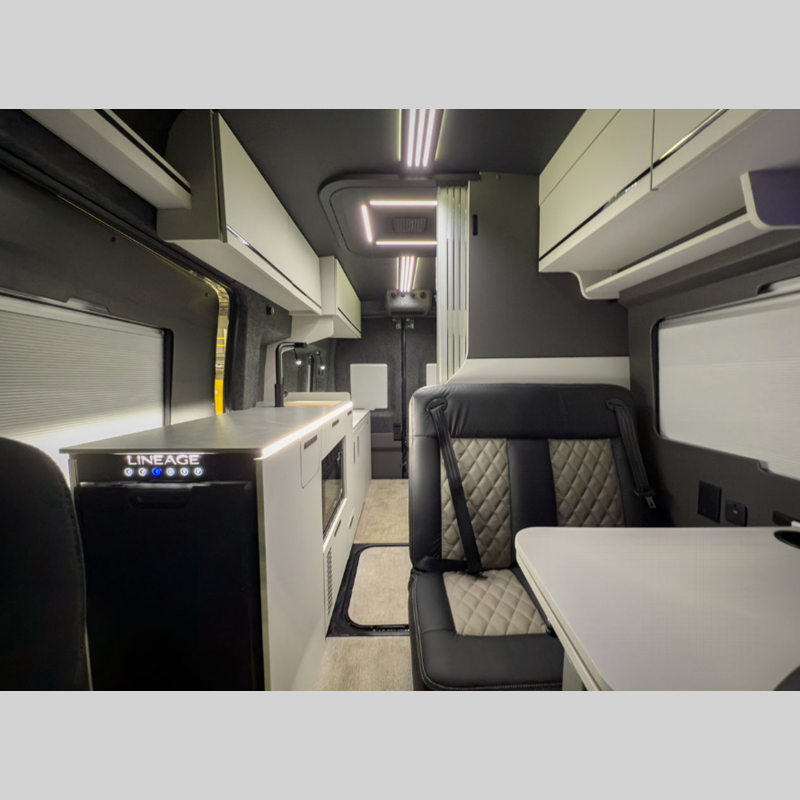

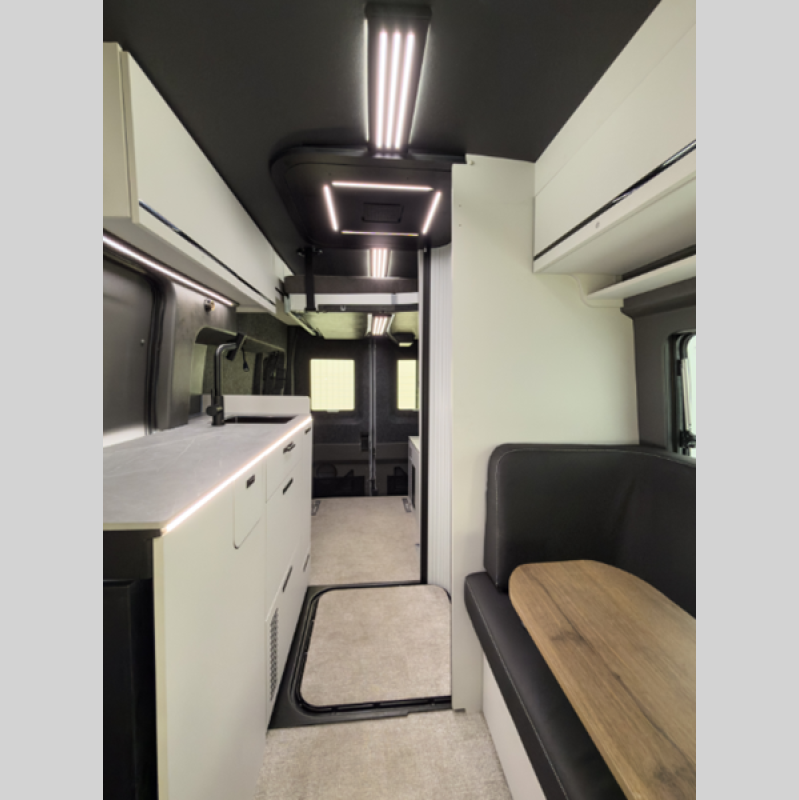

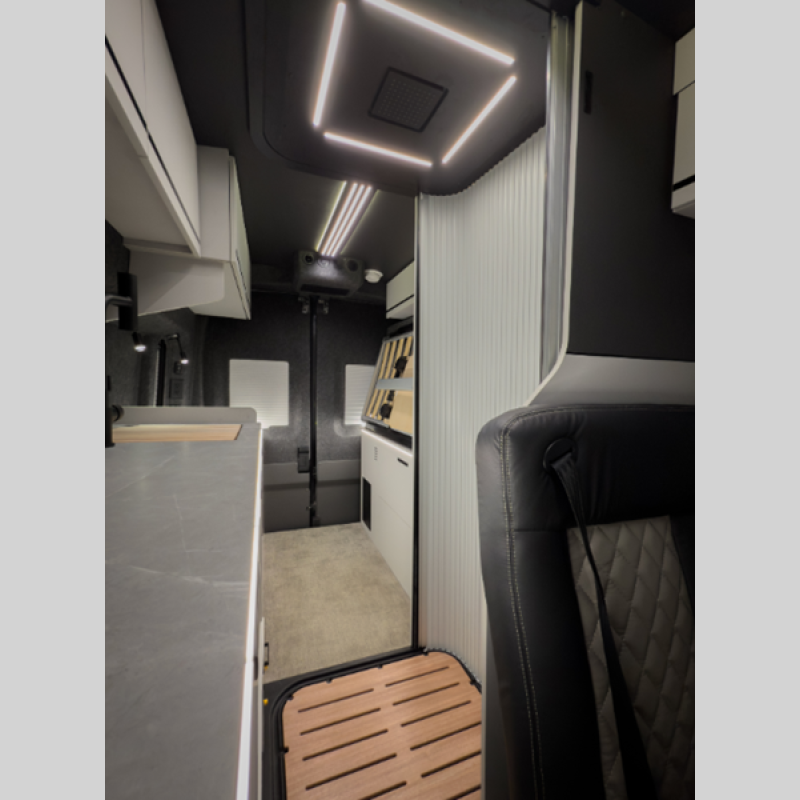

Interior

  • Easy Assist Handle
  • Side facing chaise lounge bench (LVT2)
  • Forward facing bench seat with 3point harness and CRS (LVT1)
  • Vinyl laminated cabinetry
  • Under Bench pull out drawer
  • Integrated black out window shades and screens
  • Multiple charging ports
  • Pull out hooks
  • Lagun Table with two mounting locations (LVT2)

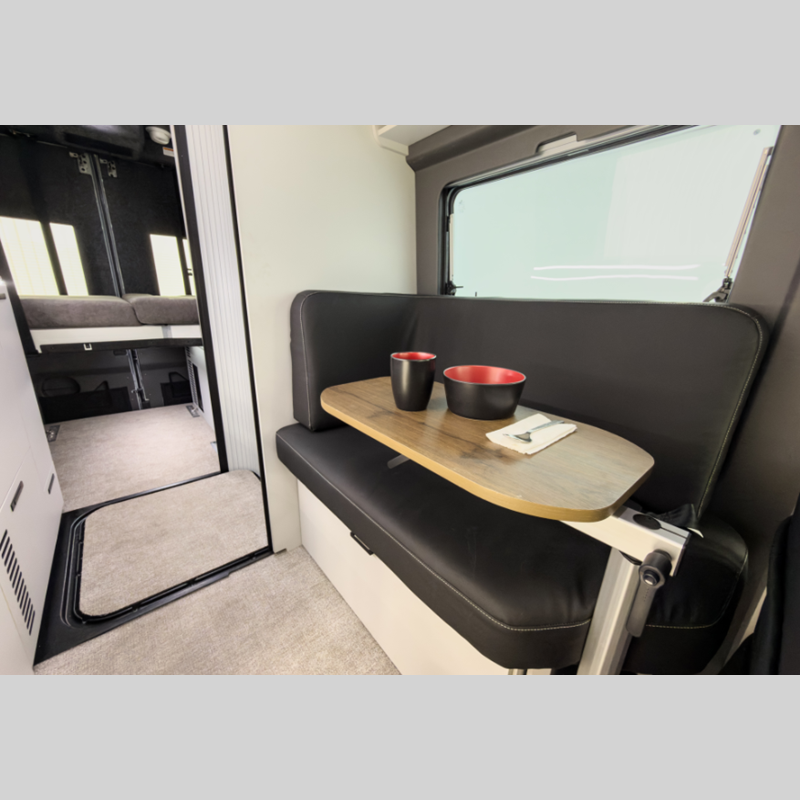

  • Expandable dinette table with two mounting locations (LVT1)
  • Easy Assist Handle (LVT1)

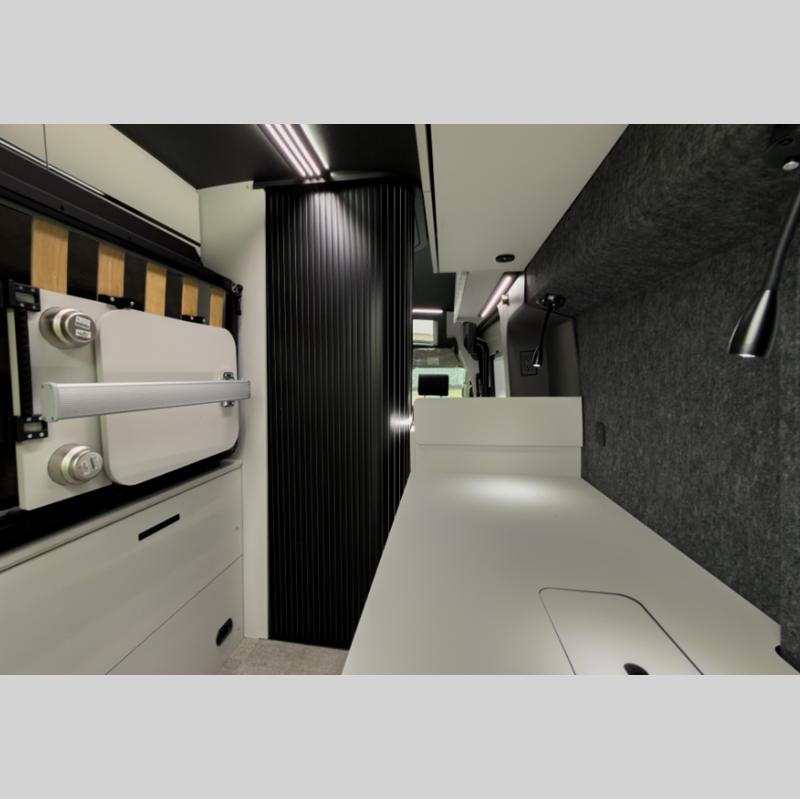

Kitchen

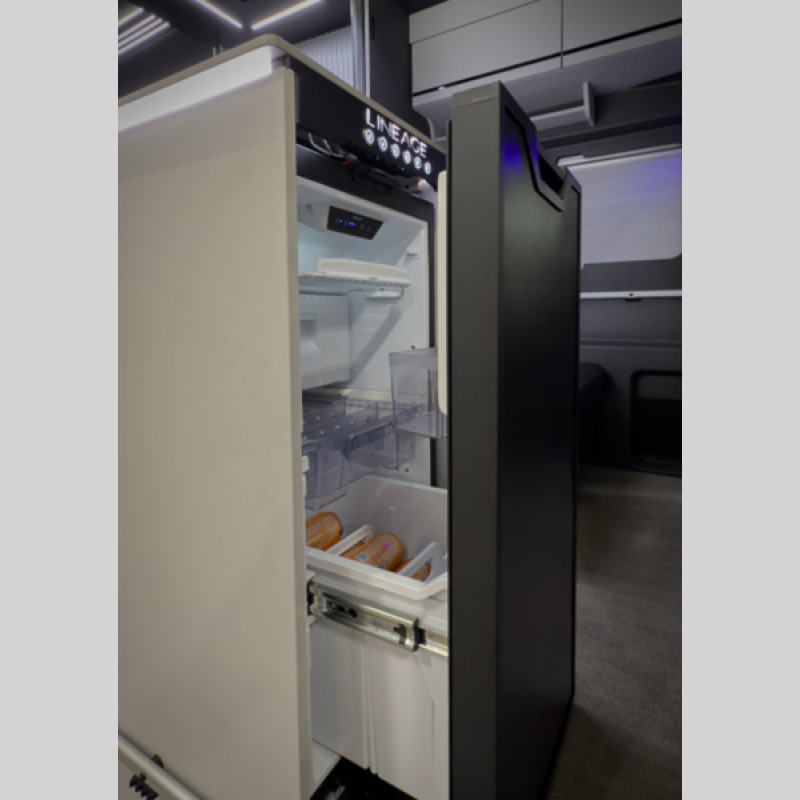

  • Thetford 3.18 Cu Ft 12V Drawer Style Refrigerator
  • Invisacook Hidden Single Burner Induction Cooktop
  • Prepped for Air Fryer/Convection Microwave Oven
  • Porcelain countertop
  • Stainless Steel 15" x 15" x 6" Sink with Cutting Board Cover
  • Matte Black pull out Kitchen Faucet
  • Pop Up Spice Rack
  • Positive locking latches
  • Dove Tail Drawer Box
  • Soft-Close drawer slides

Bedroom

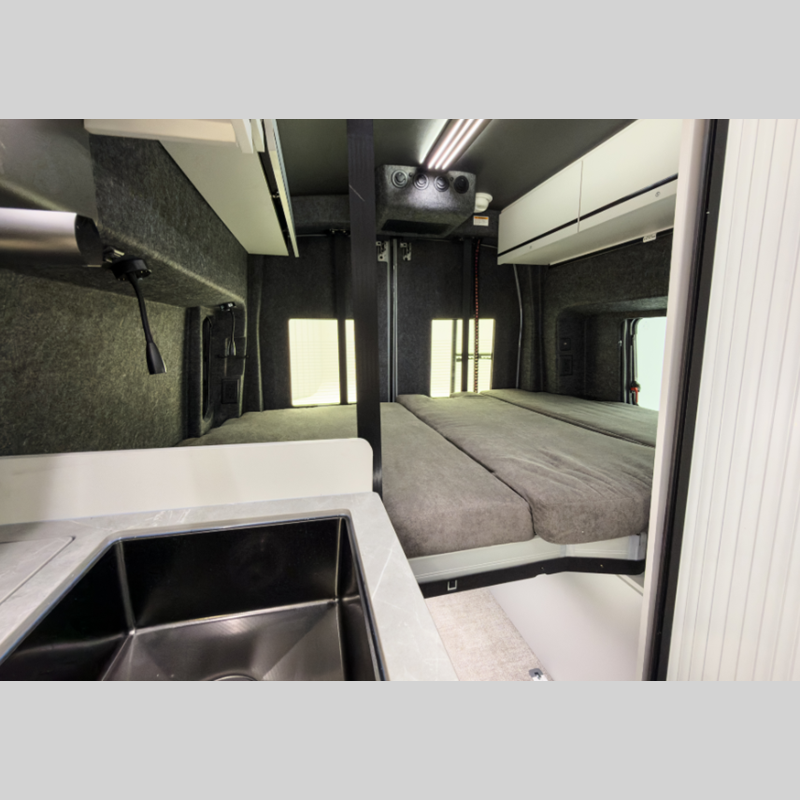

  • Expanding Lift Suite drop down bed (LVT2)
  • 54" x 80" Murphy Bed (LVT1)
  • Under Bed Storage
  • LED Reading Lights
  • USB-C Charging Ports
  • Phone Holder
  • Samsung Freestyle Projector
  • Motorized 50" Projector Screen
  • Passenger side bed base storage doors (LVT1)

Bathroom

  • Thetford Cassette toilet with electric flush and 4.7-gal tank
  • Venting window

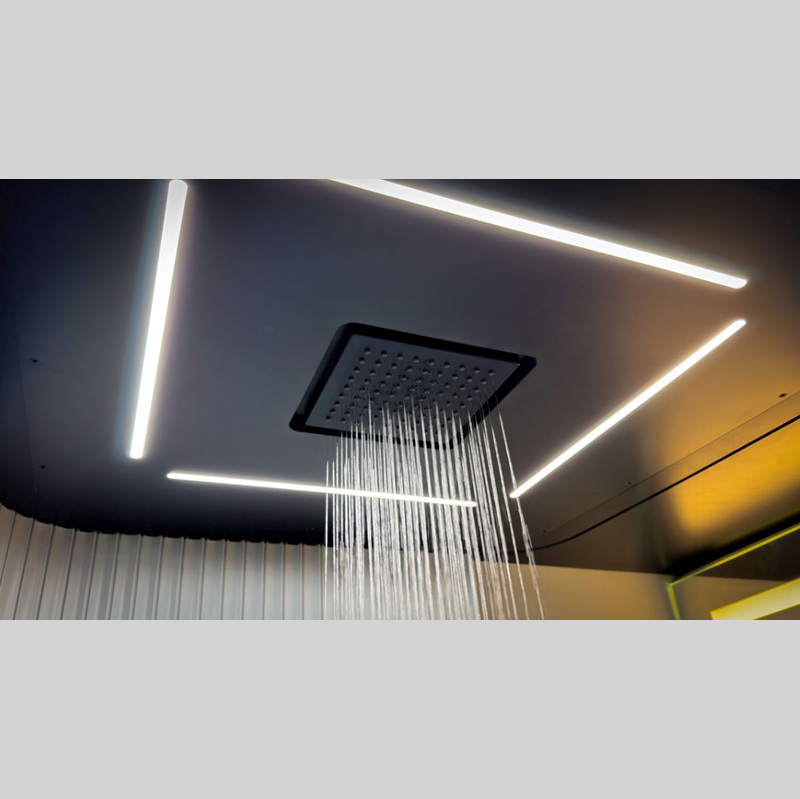

  • Rainfall shower head
  • Medicine cabinet Mirror with integrated LED lighting

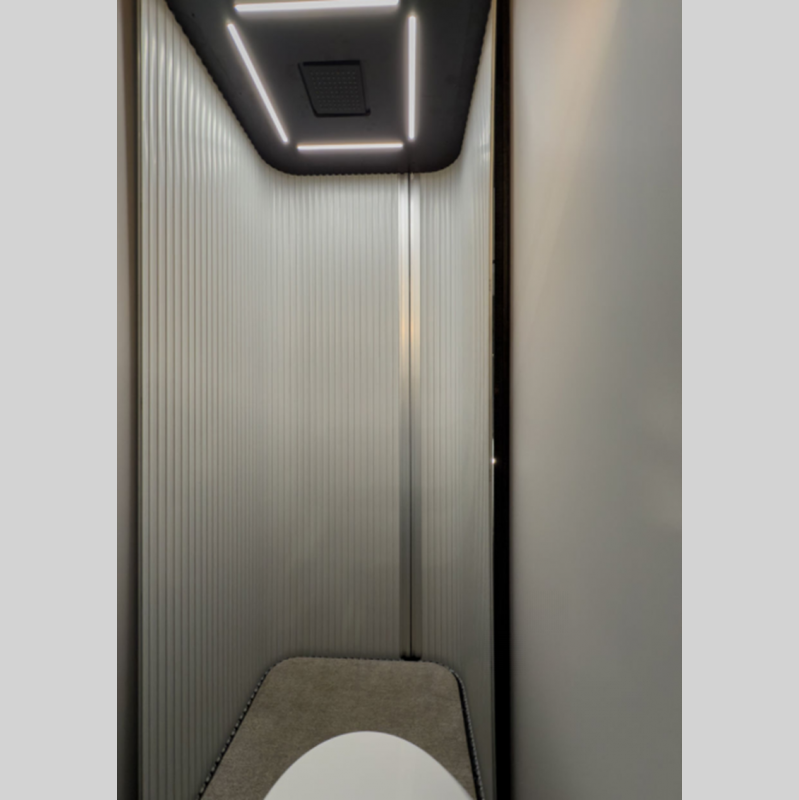

  • Tambour style roll-away shower doors
  • 30" x 54" enclosed overall size
  • Built in shower wall storage cubbies
  • Venting window (LVT1)

Utilities

  • Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global)
  • 3,000 Watt Lithionics 51V Inverter
  • SDG Mini Split 51V AC (20,000 BTU)
  • Eberspacher/Espar Airtronic gasoline heater
  • Duoetto Electric water heater
  • 12V Water Pump
  • 12V Heat pads (Fresh and Gray tanks)
  • Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher
  • 8,448 Watt-Hours 51V Lithionics battery (5,120 Watt-Hours with Pop-Top Option)
  • Prepped for optional 2nd battery including Y harness for external BMS and mounting brackets
  • 30 Amp Electrical Service
  • Victron Solar Charge Controller
  • Nomadic Bi Directional 12v - 51v DC to DC converter

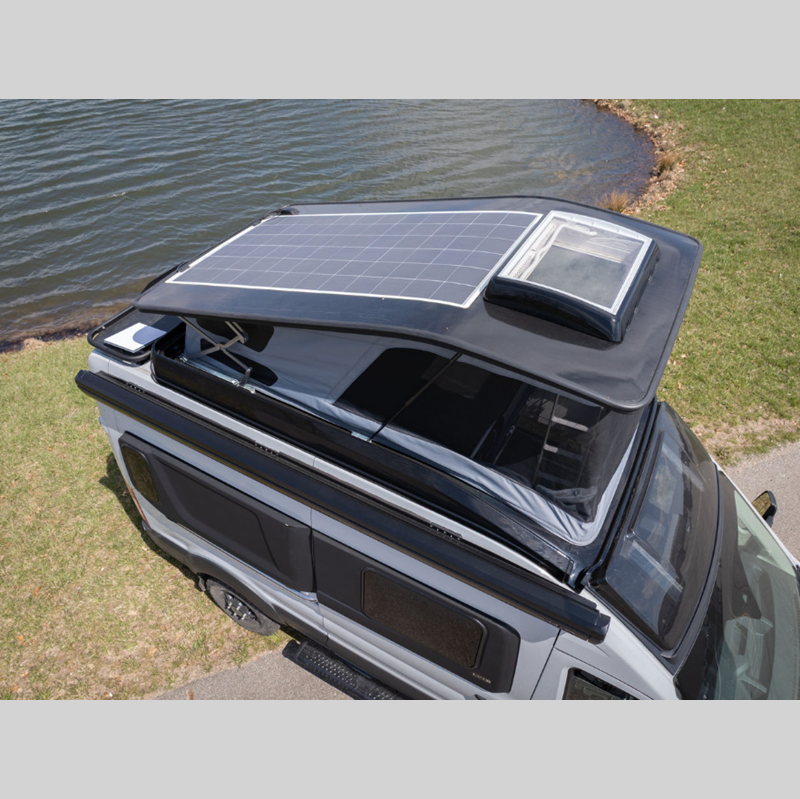

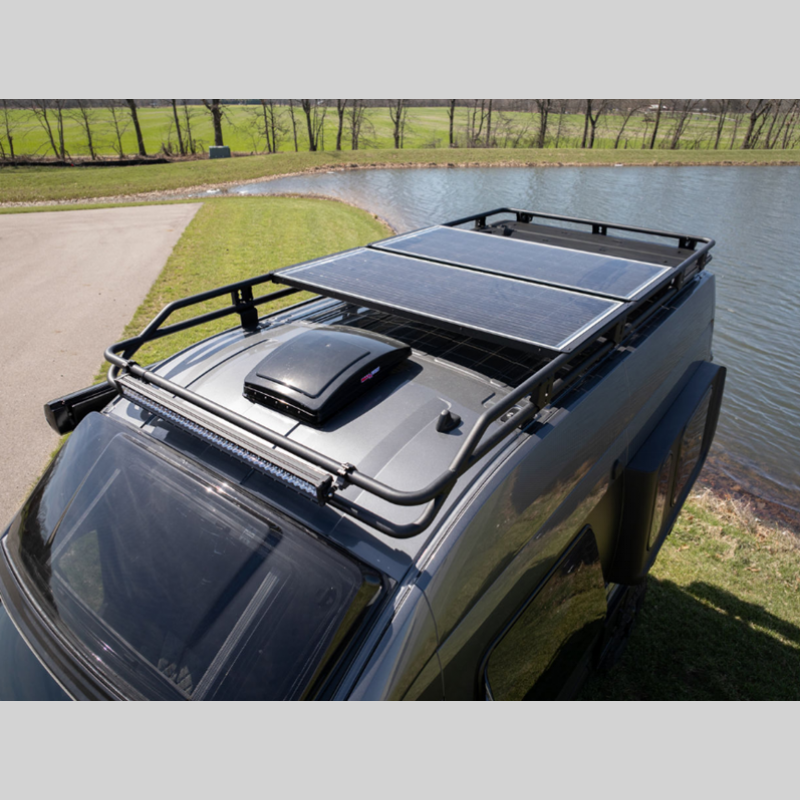

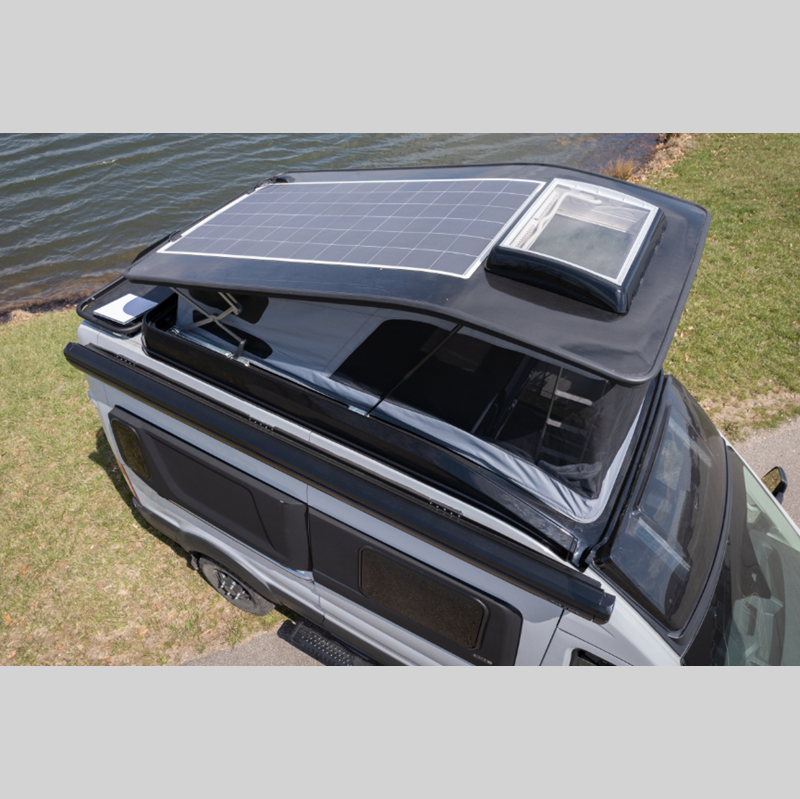

  • (2) 180-Watt Merlin Solar Panels (300-Watt Apollo panel with Pop-Top option)
  • Maxx Air Fan

Packages

Lineage Series LVT Package

  • Chassis: Ford Transit Trail 350 AWD High Roof 148" WB
  • Spare Tire Carrier
  • Standard Power Package
  • RVIA Seal

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
